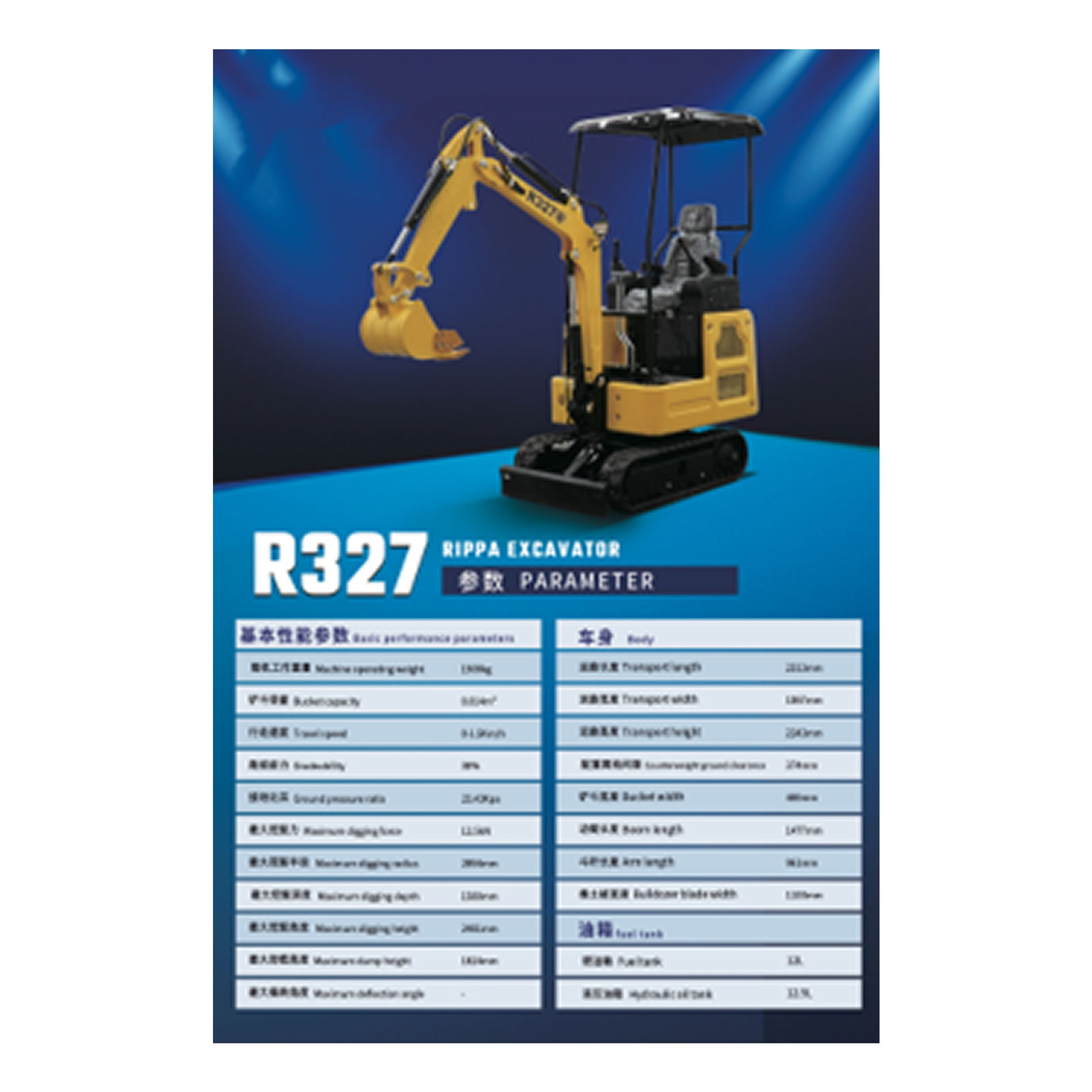

Technical Specification:
• Machine operating weight: 1500kg
• Bucket capacity: 0.014m³
• Travel speed: 0-1.5km/h
• Gradeability: 30%
• Ground pressure ratio: 23.43Kpa
• Maximum digging force: 12.5kN
• Maximum digging radius: 2894mm
• Maximum digging depth: 1580mm
• Maximum digging height: 2481mm
• Maximum dump height: 1824mm
• Maximum deflection angle: –
• Transport length: 2313mm
• Transport width: 1067mm
• Transport height: 2243mm
• Counterweight ground clearance: 374mm
• Bucket width: 400mm
• Boom length: 1477mm
• Arm length: 961mm
• Bulldozer blade width: 1100mm
• Fuel tank: 12L
• Hydraulic oil tank: 12.5L
